Usage Rubber floor tiles Sport program:

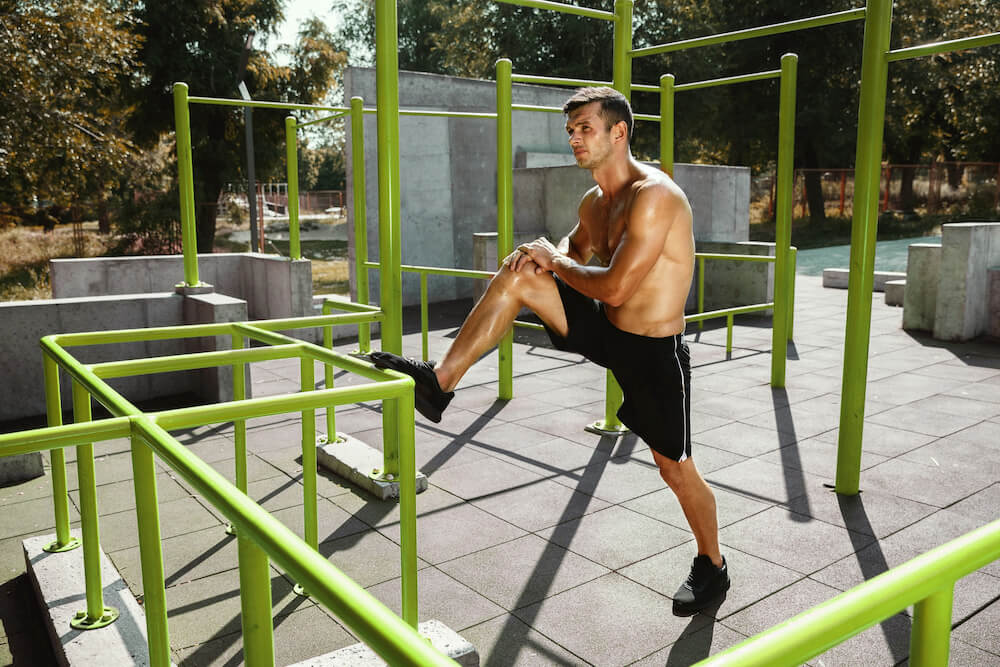

• Playgrounds, recreation and relaxation areas, fitness zones, gym, weightlifting areas, training rooms, balconies and terraces,
bike and motorcycle parking lots, horse stables, garage flooring
Advantages of KopurSoft Rubber floor tiles:
• Supreme durability thanks to EPDM granules on the walking surface
• Easy installation and maintenance, non-toxic
Description of Rubber floor tiles Sport program:
• upper layer from EPDM-granules and recycled SBR-granules (Premium), or 100% SBR-granules (Classic)
• Polyurethane binder
• Smooth and anti-slip surface
• Bottom layer designed for protection against falls from heights
Rubber floor tiles Sport program, Classic
| Code number | Thickness
|
Weight
|
Critical Fall Height |
Dimensions
|
Pallet packing
|
Remarks | Color |
|---|---|---|---|---|---|---|---|
| K0180015 | 30 | 5.3 | 1.00 m | 500 x 500 | 45 | SBR, DIN EN 1177 | RED |
| K0180016 | 40 | 6.9 | 1.27 m | 500 x 500 | 35 | SBR, DIN EN 1177 |  |
| K0180025 | 50 | 8.6 | 1.50 m | 500 x 500 | 25 | SBR, DIN EN 1177 |
| Code | Thickness
|
Weight
|
Kritična višina padca |
Dimensions
|
Pallet packing
|
Remarks | Color |
|---|---|---|---|---|---|---|---|
| K0180017 | 30 | 5.3 | 1.00 m | 500 x 500 | 45 | SBR, DIN EN 1177 | GREEN |
| K0180001 | 40 | 6.9 | 1.27 m | 500 x 500 | 35 | SBR, DIN EN 1177 |  |
| K0180024 | 50 | 8.6 | 1.50 m | 500 x 500 | 25 | SBR, DIN EN 1177 |
| Code | Weight
|
Weight
|
Kritična višina padca |
Dimensions
|
Pallet packing
|
Remarks | Color |
|---|---|---|---|---|---|---|---|
| K0180003 | 30 | 5.3 | 1.00 m | 500 x 500 | 45 | SBR, DIN EN 1177 | GREY |
| K0180030 | 40 | 6.9 | 1.27 m | 500 x 500 | 35 | SBR, DIN EN 1177 |  |
| K0180031 | 50 | 8.6 | 1.50 m | 500 x 500 | 25 | SBR, DIN EN 1177 |
Rubber floor tiles Sport program, Premium
| Code number | Thickness
|
Weight
|
Critical Fall Height |
Dimensions
|
Pallet packing
|
Remarks | Color |
|---|---|---|---|---|---|---|---|
| K0180018 | 30 | 5.3 | 1.00 m | 500 x 500 | 45 | EPDM/SBR DIN EN 1177 | RED* |
| K0180019 | 40 | 6.9 | 1.22 m | 500 x 500 | 35 | EPDM/SBR DIN EN 1177 |  |
| K0180020 | 50 | 8.6 | 1.50 m | 500 x 500 | 25 | EPDM/SBR DIN EN 1177 |
* Basic EPDM color. Other color options are possible by prior agreement.
Check out also KopurSoft Safe Program
Assembly Instructions for Rubber floor tiles Sport program:
Substrate preparation:
• The substrate must be levelled, frost-resistant, sand or concrete-based
• The drainage should be about 30 cm thick, consisting of gravel granulation up to 35 mm, covered with a 5 cm layer of fine gravel 0 – 3.5 mm granulation
• Edgings and kerbs are recommended
Installation on gravel surfaces:
Rubber floor tiles should be joined with connecting pegs.
Installation on hard (e.g. concrete, stone) surfaces:
The rubber tiles can be glued to the surface or joined with connecting pegs.
Cleaning:
- a broom, dry vacuum cleaner or damp mopping for daily use
- air blower
- a high-pressure hot water cleaner with a nozzle offset of at least 40 cm (direct jet can damage the plates) The water temperature must not exceed 80 °C.
Attention! Do not use solvent-based cleaning materials.
